Open generated images from tool activity

[colonelpanic8]

What Changed

• Recognize completed imageGeneration activities and expose only their activity ID and filename to the client timeline.
• Resolve the provider-saved image path server-side and serve it through a signed, exact-file asset capability.
• Render generated images as compact evidence links in the work log instead of automatically expanding thumbnails.
• Open selected generated images in a dedicated right-panel tab alongside files, diffs, terminals, and browser previews.
• Keep generated-image links visible across turn/work-log folding and preserve open image tabs across reloads.
• Retry the short projection race when an image link is opened immediately after completion, while failing non-transient asset errors immediately.

Why

Generated images already arrive with a provider-saved path in completed tool activity, but that activity was rendered only as a text work-log row. The image should remain viewable after streaming finishes and after a thread is reloaded, without depending on the assistant to repeat a filename.

The interaction follows the Codex desktop pattern: images remain compact, link-like evidence in the transcript and open on demand in the existing right-side workspace. This avoids large automatic thumbnails and avoids requesting image assets until the user selects one.

This builds on the direction explored by #3984, which promotes image filenames explicitly mentioned in assistant Markdown, and #4321, which covers broader workspace/browser media references. Neither PR is included as a dependency here.

UI Changes

• Completed image-generation activity shows an image icon and filename link under the work-log row.
• Selecting the link opens or activates a named generated-image tab in the right panel.
• The panel shows the full image with contained sizing, loading state, and load-error state.
• Multiple generated images remain separate compact transcript links and separate reusable panel tabs.

Current browser evidence

Captured from the exact current PR head 9939cc9a46e6a33dbbca4961b1c755f9ed6fae21 in the combined package 0.0.29-patched-main-20260724 (integration 4dd4cef4039303179929a1dbdbf0c9b358c076f9). The fixture uses a real provider imageGeneration event in a disposable repository.

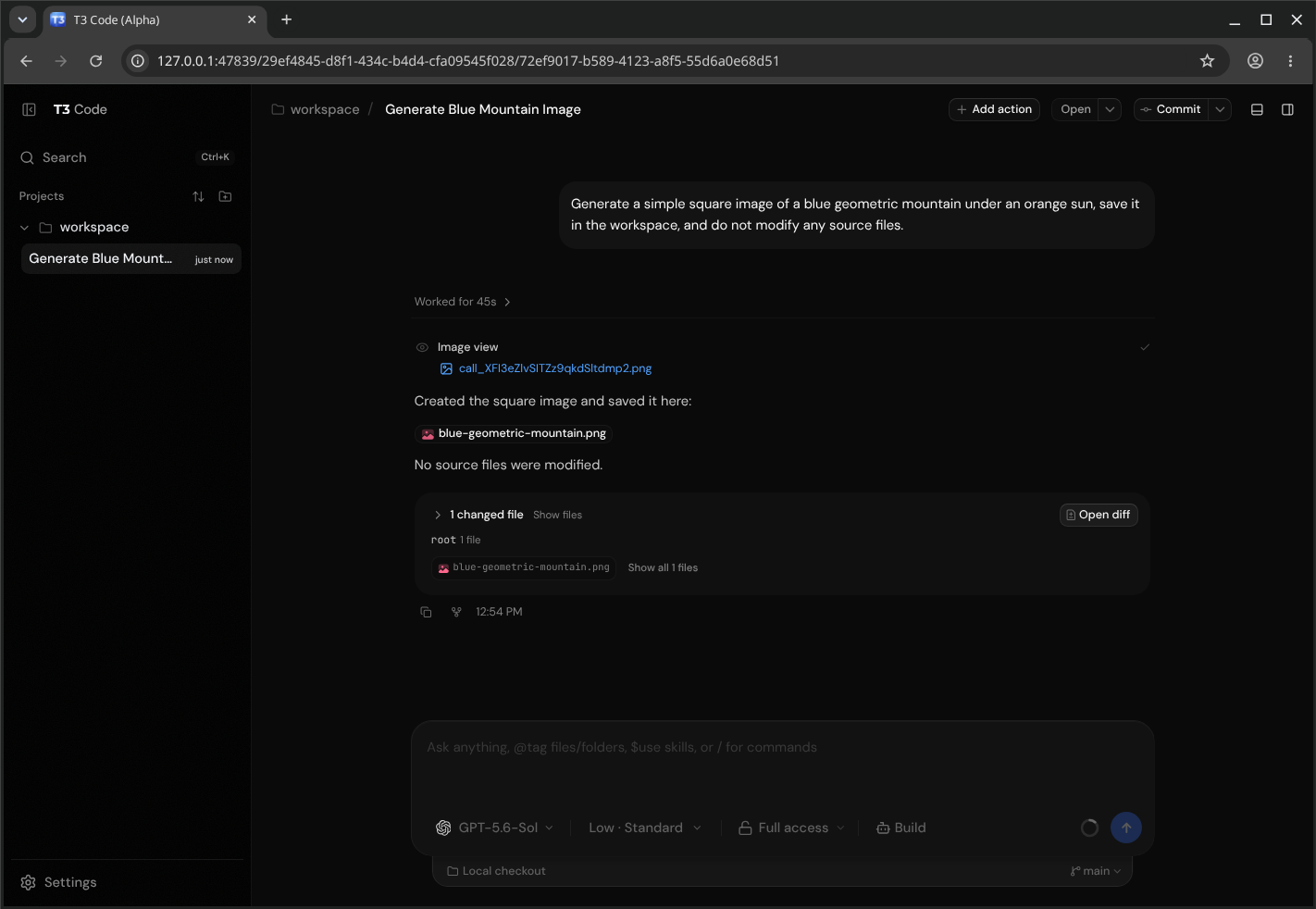

Compact work-log link	Generated-image right panel

MP4 version of the interaction

Checklist

• pnpm exec vp test run apps/web/src/rightPanelStore.test.ts apps/web/src/components/chat/MessagesTimeline.test.tsx apps/web/src/components/chat/GeneratedImagePanel.test.tsx apps/server/src/assets/GeneratedImageResolver.test.ts (48 tests)
• Targeted pnpm exec vp check for all changed server/web files
• pnpm --filter t3 run typecheck
• React best-practices review: no asset request before selection, no render-time store subscription, keyboard events isolated from the collapsible parent row
• Integrated browser verification in an isolated authenticated environment against the exact combined package: real generated-image activity rendered a compact work-log link and opened the signed image in a reusable right-panel tab
• pnpm --filter @t3tools/web run typecheck currently reports only existing unrelated errors in BranchToolbarBranchSelector.tsx, ModelPickerContent.tsx, PreviewAutomationHosts.tsx, and the atom query hooks

---

Note

Medium Risk
Touches signed asset issuance and filesystem path validation for provider-saved files; scope is bounded by image-preview checks and exact basename matching, with retries limited to not-found races.

Overview
Provider-generated images can be opened on demand from completed imageGeneration tool activity instead of only showing as plain work-log text.

The server adds a generated-image asset resource: assetsCreateUrl looks up the saved path from thread projection via findGeneratedImagePath, retries briefly when the file is not ready yet, and AssetAccess issues exact-path signed tokens (image preview paths only) with basename-locked resolution.

The client exposes only activity id and filename in work-log entries (not the provider path), renders a compact filename link in the timeline, and opens a dedicated generated-image right-panel tab (GeneratedImagePanel + useAssetUrlState). Timeline folding and work-log grouping skip generated-image rows so links stay visible when turns or tool groups collapse.

Right-panel persistence bumps to v8 with migration validation for generated-image surfaces.

^{Reviewed by Cursor Bugbot for commit 9939cc9. Bugbot is set up for automated code reviews on this repo. Configure here.}

Note

Add generated image viewer panel accessible from tool activity work log

• Adds a GeneratedImagePanel right-panel surface that fetches and displays provider-generated images via a signed asset URL, with loading and error states.
• Clicking a completed image generation entry in the messages timeline opens the panel; the entry renders as a standalone link (not collapsed into grouped work-log rows).
• Extends the asset token system with a generated-image claim kind, strict canonical path validation, and two new error types (AssetGeneratedImageNotFoundError, AssetGeneratedImageInspectionError).
• The assetsCreateUrl RPC polls orchestration state with retry until the generated file is available before issuing a signed URL.
• Bumps RIGHT_PANEL_STORAGE_VERSION to 8; persisted generated-image surfaces are validated on migration and dropped if malformed.

^{Macroscope summarized 9939cc9.}
